Regal Princess

Select a Venue:

Princess Theater

AUDIO

JUMP TO DEPARTMENT

VIDEO & LIGHTING

The Princess Theatre is the largest entertainment venue on board. Fully staffed professional technical production team consisting of stage technicians, audio, lighting, and Automation operators.

AUTOMATION

Location
Deck 6/7 Forward

Stage Depth
33ft

Capacity
956

Proscenium
37ft Wide - 16ft High

  • 110 V 15 A 60Hz Edison power available throughout

AUDIO

Full range PA system with surround speakers with Assisted listening devices available

Mains

  • 14 x d&b Q1

  • 5 x d&b Q7

  • 4 x d&b Q-sub

  • 2 x B2 Sub

Delays & fills

  • 4 x d&b Q1

  • 2 x d&b Q7

  • 4 x d&b E3 Fills

  • 12 x d&b E8

  • 2 x d&b T10 Delays

  • 3 x d&b E15 Delay subs

  • 12 x d&b E6 Surrounds

Stage

  • 5 x d&b Max mounted underfloor downstage

  • 1 x loose

  • 6 x d&b E12 Flown

  • Avid Mix Rack console with Profile surface

  • 4 channel RADAR hard disk playback

  • 32 channel QLab playback system with Dante track support

  • 4 x PSM900

  • 4 x Aviom D800 Distributor

  • CC300 ClearCom Headsets

  • 22 x Aviom personal mixers

  • 4 x Shure PSM1000 IEM

  • 12 x Shure ULXD4 Dual RF system

  • CD, media & - mini disc player

  • 4 Channels of wired Clearcom located throughout theatre

  • Grand piano C7

  • Backline available upon request

LIGHTING & VIDEO

  • Lighting Dimmer Power: 110V 20A 60Hz L5-20 Twistlock

  • Lighting Non-Dim Power 110V 20A 60Hz L5-20 Twistlock and 220V 20A 60Hz L6-20 Twistlock

Video

  • GrandMA 2 Full size Console with Replay Unit & NPU

  • 44ft in x 14ft 6in LED 10mm pixel pitch video wall (1920X1080 resolution)

  • Large 14’8” x 26’3” projection screen

  • 1 x Green Hippo Hippotizer V4 Boreal Media server with 4 SDI inputs and a SPMTE card

  • Panasonic PT-DZ21K2 - Main projector

  • Input capabilities, VGA, HDMI, SDI for presentations

  • 2 x Panasonic PT-DZ11KW - Side projectors

Misc

  • 2 x J Martin Jem Glaciator low fog machine

  • 2 x MDG Atmosphere APS haze machine

  • 2 x RJ Cyrano 2500W follow spots

  • 1 Lectern

  • Automated main curtain

  • Additional automated tracks for drapery also available

  • 3 black stools

Lighting

Over 120 intelligent & conventional lights and strobes consisting of:

  • 30 x GLP impression Spot Ones

  • 6 x Robe Robin DL4s

  • 23 x Varilite VL3K

  • 28 x Varilite VLX Wash

  • 27 x GLP Volkslicht Zoom RGBW

  • 11 X Martin Atomic 3000

  • 20 x ETC Desire D60

  • 10 x ETC Source 4 LED 14deg

  • 42 x ETC Source 4 LED 26deg

  • 18 x ETC Source 4 LED 36deg

AUTOMATION

???

  • Details

???

  • Details

???

  • Details

  • View from the Auditorium

  • View from Backstage

  • View from the Stage

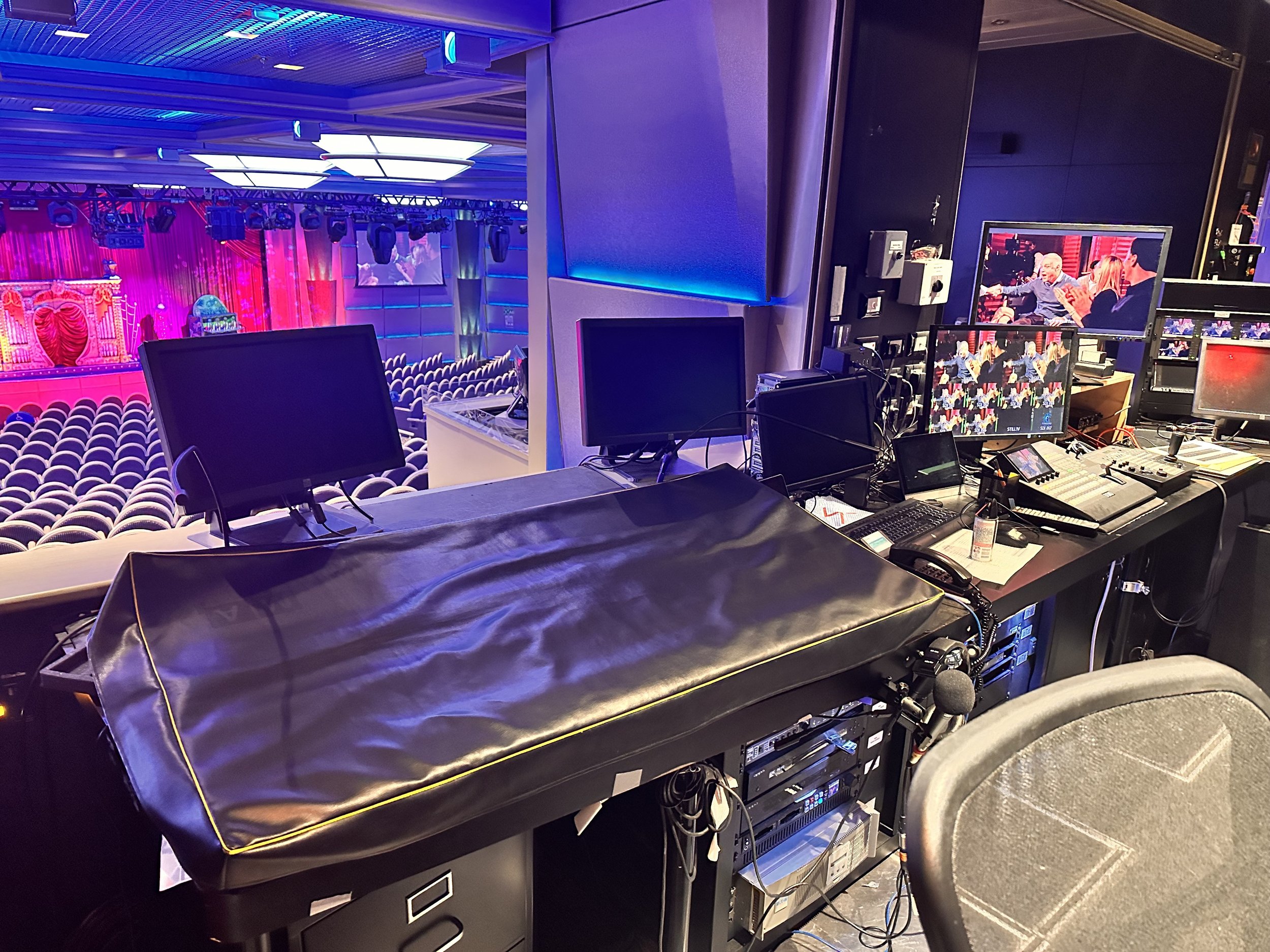

  • View from the booth

VISTA LOUNGE

AUDIO

JUMP TO DEPARTMENT

VIDEO & LIGHTING

Vista Lounge is the second largest Entertainment venue onboard. Fully staffed professional technical production team consisting of stage technicians, audio, lighting operators.

Location
Deck 7 Aft

Stage Depth
11ft 2” with 5ft retractable thrust

Capacity
352

Stage
30ft 10” Wide - 7ft High

110 V 15 A 60Hz Edison power available throughout

AUDIO

Full range PA system with coverage for all seated areas. Assisted listening devices available

Mains

  • 16 x D&B E6,

  • 8 x D&B TI10L,

  • 4 x D&B TI Sub

Misc

  • Avid Venue SC48 audio console

  • QLab playback capability

  • 2 Chanels of clearcom throught the venue

  • 4 x Shure UR4D+

  • DVD & Tascam CDR200

  • 6 x Aviom A-16II Personal mixers

  • Yamaha Grand Piano

  • Backline available upon request

Stage

  • 4 x D&B E6

LIGHTING & VIDEO

  • Lighting Dimmer Power: 110V 20A 60Hz L5-20 Twistlock

  • Lighting Non-Dim Power 110V 20A 60Hz L5-20 Twistlock & 220V 20A 60Hz L6-20 Twistlock

Video

  • GrandMA2 Ultralite

  • 1 x Panasonic PTDW11K Projector

  • Projection screen 15ft x 7ft

Misc

  • 1 MDG Atmosphere APS haze machine

  • 1 lectern

  • Automated main curtain & hydraulic stage Lift

  • 2 x black stools

Lighting

Over 50 intelligent & conventional lights consisting of:

  • 12 x GLP Volks,

  • 4 x GLP Spot 1,

  • 32 x ETC D40,

  • 10 x ETC Source 4 LED,

  • 8 x ETC Source 4 Par

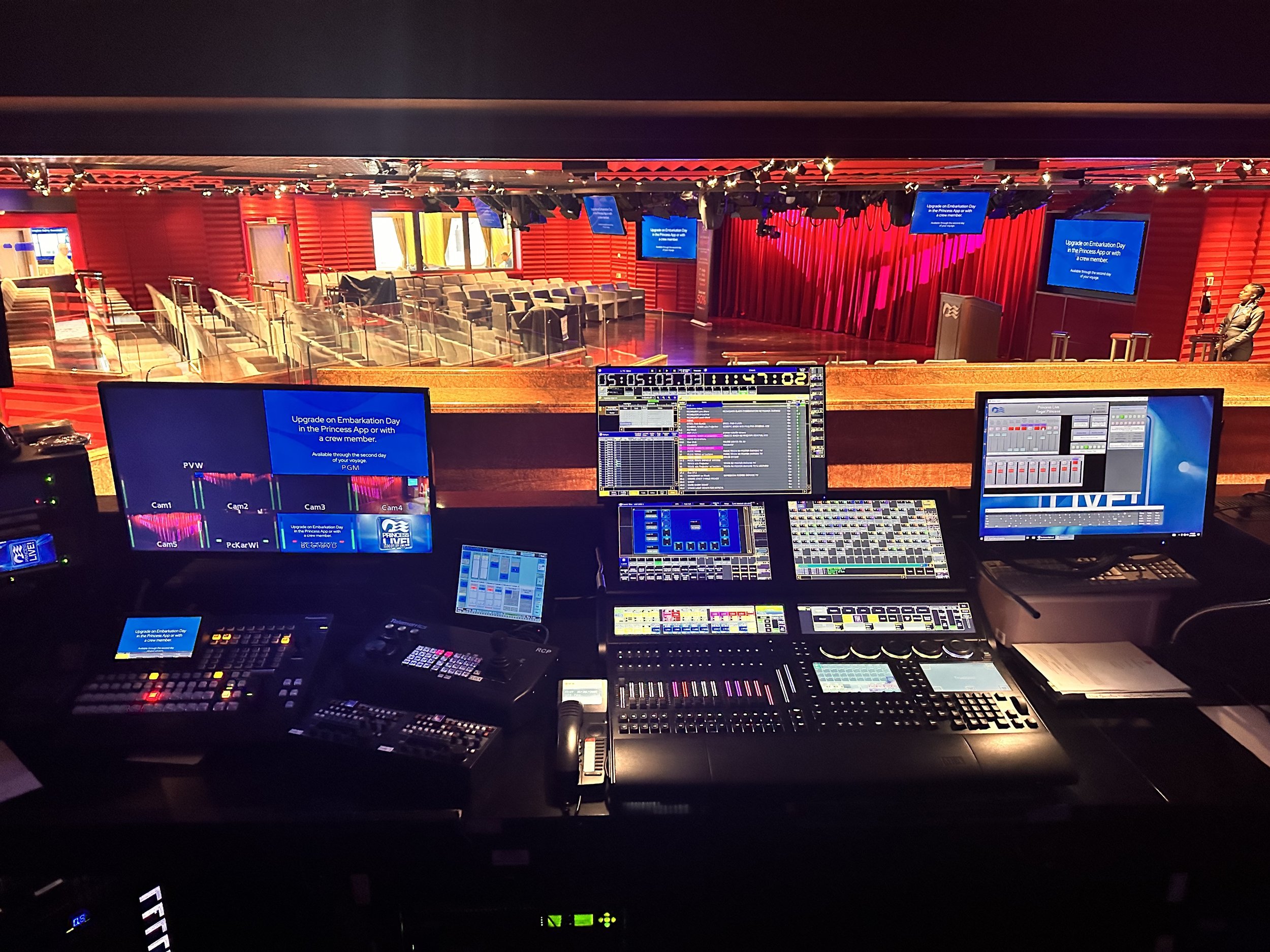

PRINCESS LIVE

AUDIO

JUMP TO DEPARTMENT

VIDEO & LIGHTING

Princess Live is another Entertainment venue onboard. Fully staffed professional technical production team consisting of stage technicians, audio, lighting operators.

Location
Deck 7 MID Aft

Stage Depth
19ft

Capacity
246

Stage
22ft 6” Wide - 8ft High

110 V 15 A 60Hz Edison power available throughout

AUDIO

Full range PA system with coverage for all seated areas. Assisted listening devices available

House

  • 32 x D&B E5

Misc

  • Avid Venue SC48 audio console

  • QLab playback capability

  • 4 x Shure UR4D RF system

  • Tascam CDR200

  • Roland Electric Piano RG3F

  • Backline available upon request

Stage

  • 4 x D&B E8,

  • 2 x D&B E15X Sub

  • 2 x D&B Max 12 Stage Monitor

LIGHTING & VIDEO

  • Lighting Dimmer Power: 110V 20A 60Hz L5-20 Twistlock

  • Lighting Non-Dim Power 110V 20A 60Hz L5-20 Twistlock & 220V 20A 60Hz L6-20 Twistlock

Video

  • GrandMA2 Ultralite

  • 8ft x 12ft Projection screen

  • 1 Panasonic Video Mixer Digital AV Mixer AV-5410

  • 2 x Panasonic P2HD Camera, 3 x Panasonic AKHC1500 remote controlled cameras

  • 4 x 40in Samsung TV’s, 2 x 75in Samsung TV’s

  • 1 MDG Atmosphere APS haze machine

  • Portable CAVS Karaoke Play DCG Deluxe 64 rack

Misc

  •  1 lectern

  • 2 x black stools

Lighting

Over 25 intelligent and 50 conventional lights, UV, and strobes consisting of:

  • 7 x GLP impression Spot Ones,

  • 19 x ETC Desire D40,

  • 12 x ETC Source 4 LED 50deg,

  • 27 x ChromaQ ColorBlock

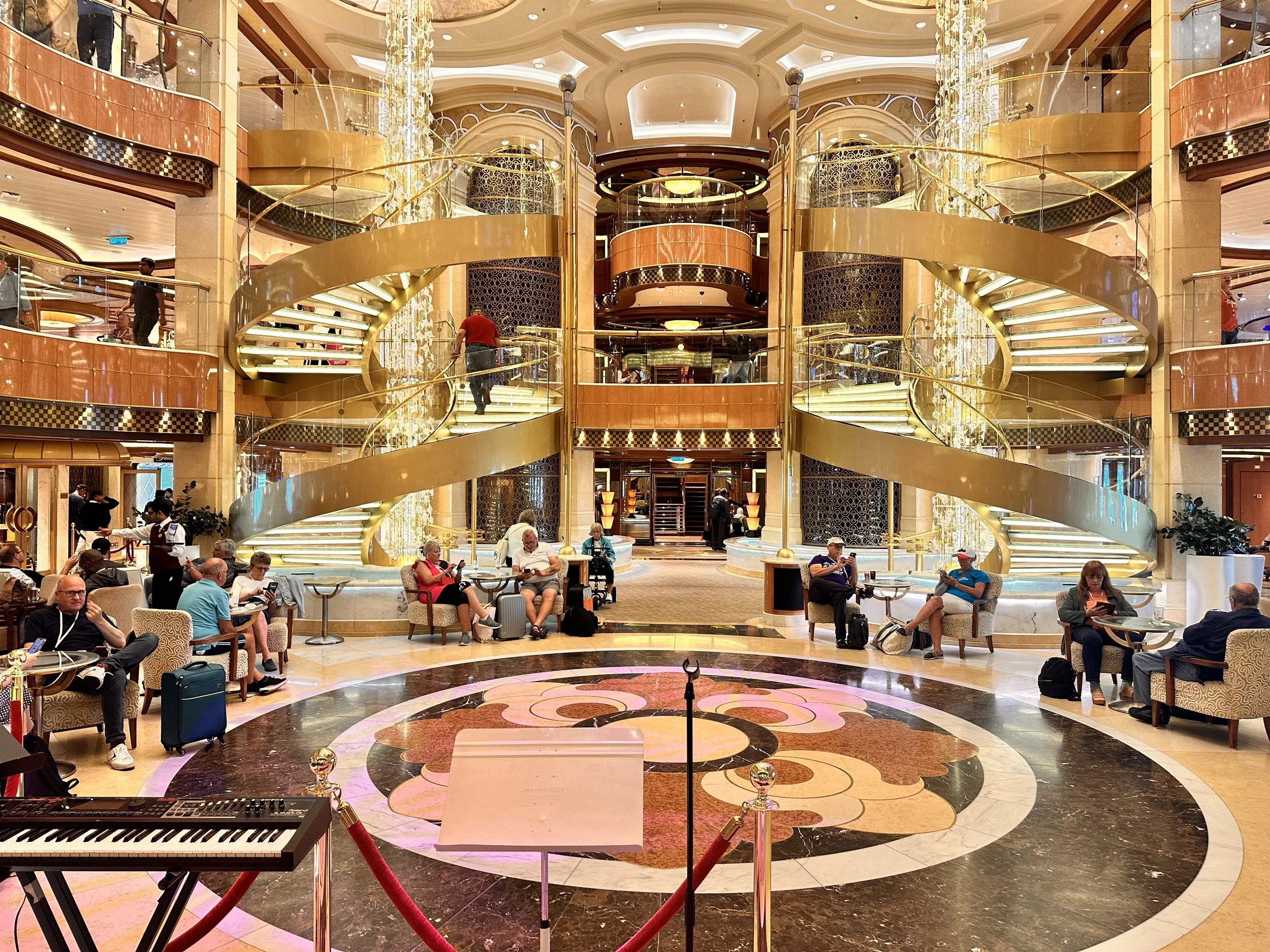

PIAZZA / ATRIUM

Vista Lounge is the second largest Entertainment venue onboard. Fully staffed professional technical production team consisting of stage technicians, audio, lighting operators.

Lighting
N / A

Fixed Band
Yamaha Grand Piano

Capacity
Open, walk-through venue

Sound
4 x Shure UR4D RF System
Yamaha LS9 Audio console
CD and MP3 Player (Tascam)
